Rotator adapters

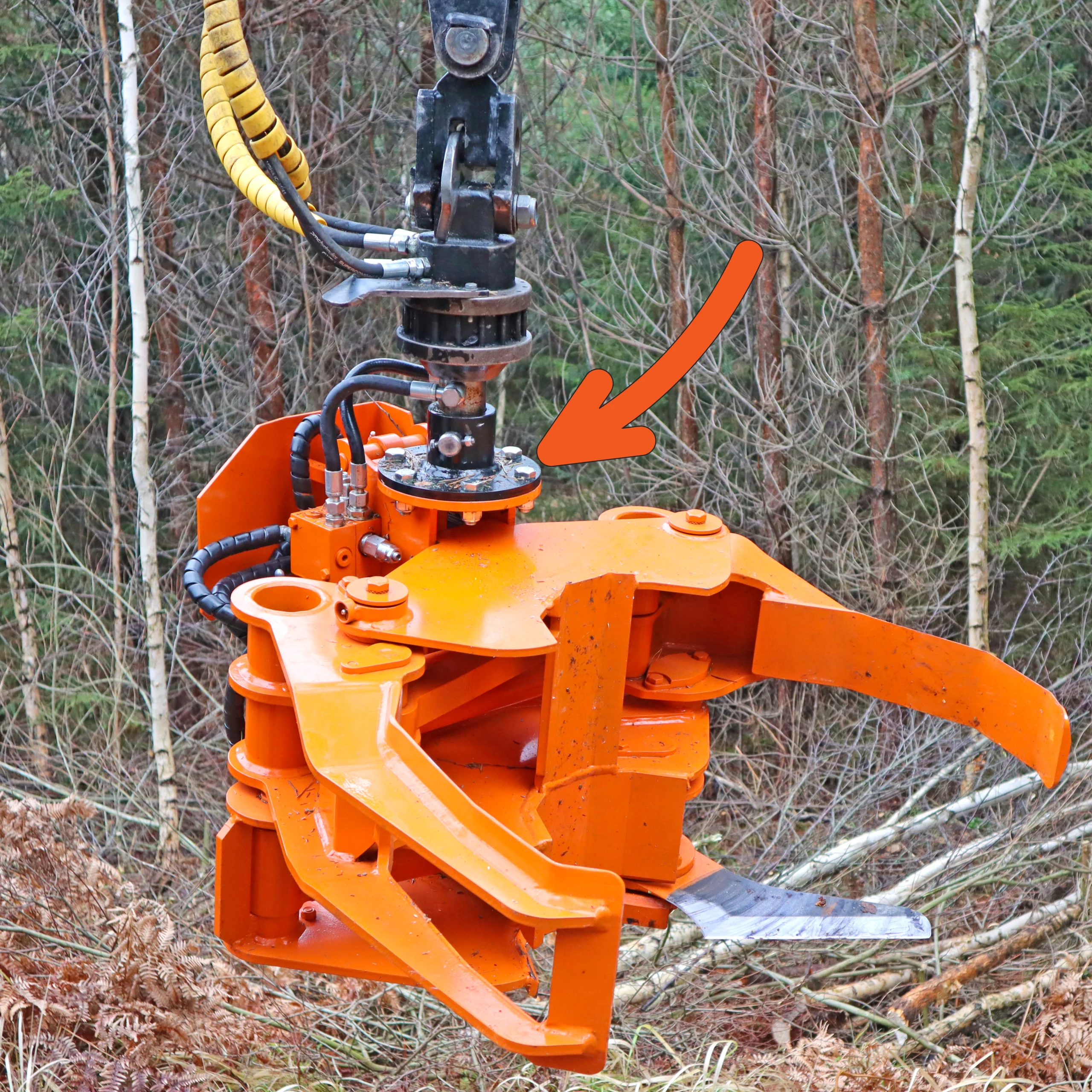

An adapter will match your rotator
Grapples can be shipped with the correct adapter for your rotator.
Other dimensions can be available. Contact us in case of need.
Standard adapters

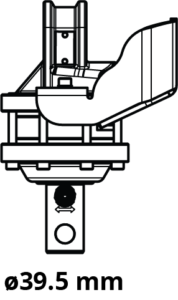

| Biojack models | Grapple connector | Rotator axle ø39.5 mm

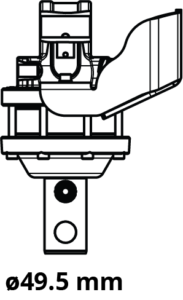

| Rotator axle ø49.5 mm

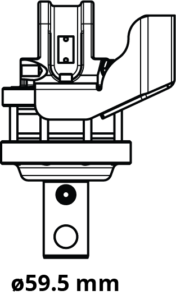

| Rotator axle ø59.5 mm

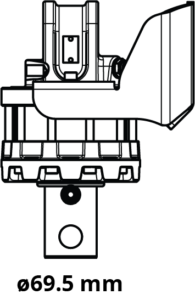

| Rotator axle ø69.5 mm

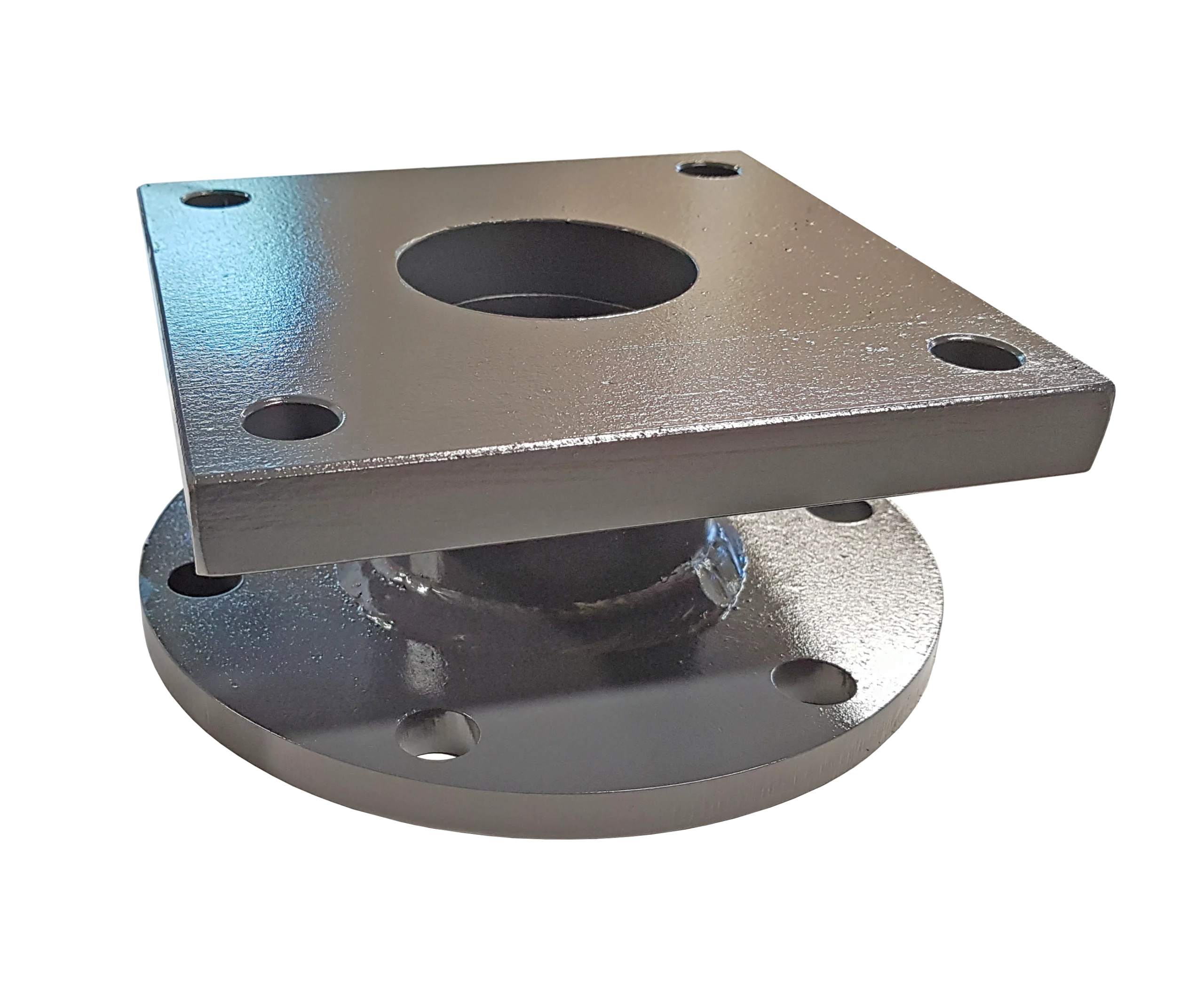

| Rotator flange 140×140 mm
| Rotator flange ø173 mm (4 or 6 holes)
|
| Bj110 | Sleeve ø39.5 mm
|

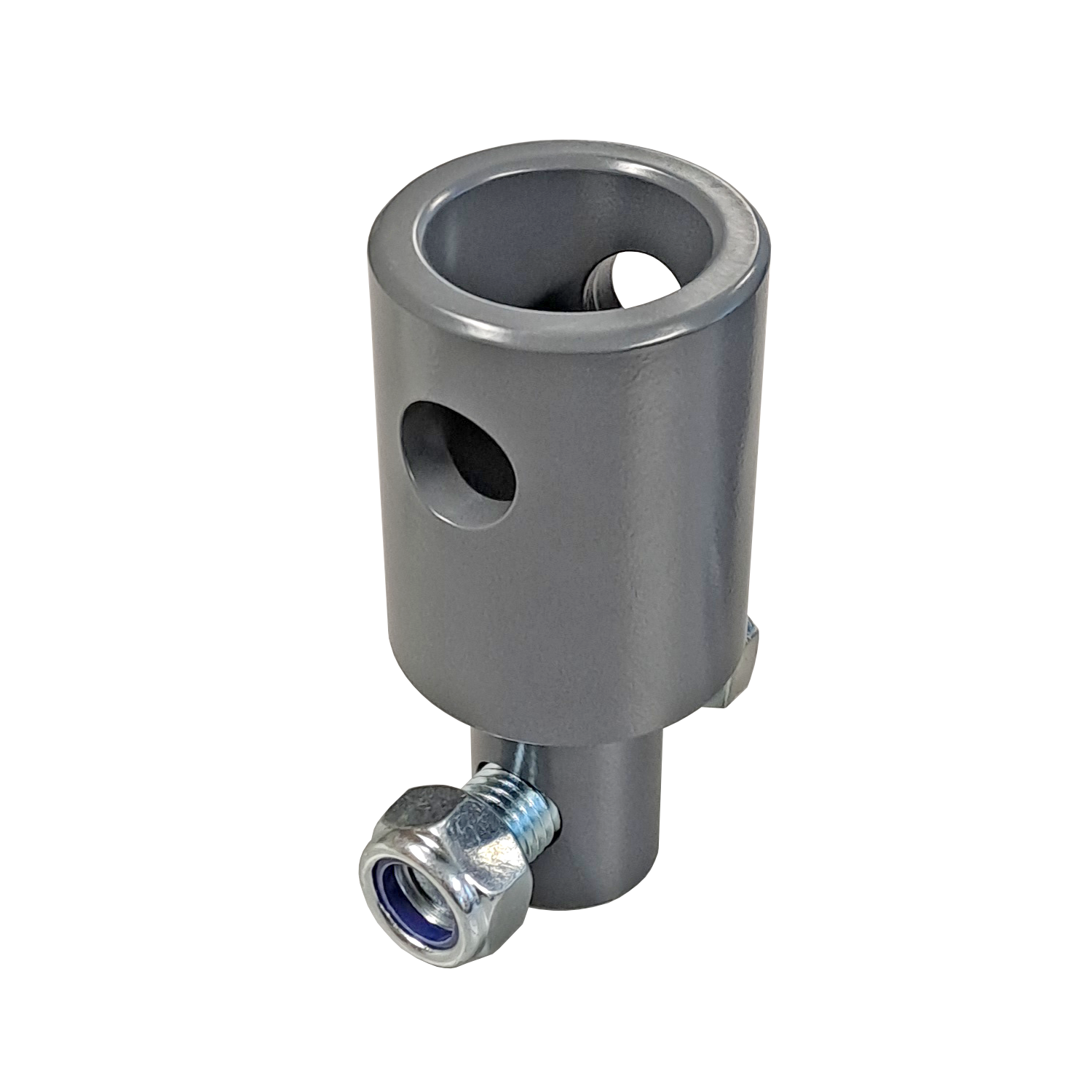

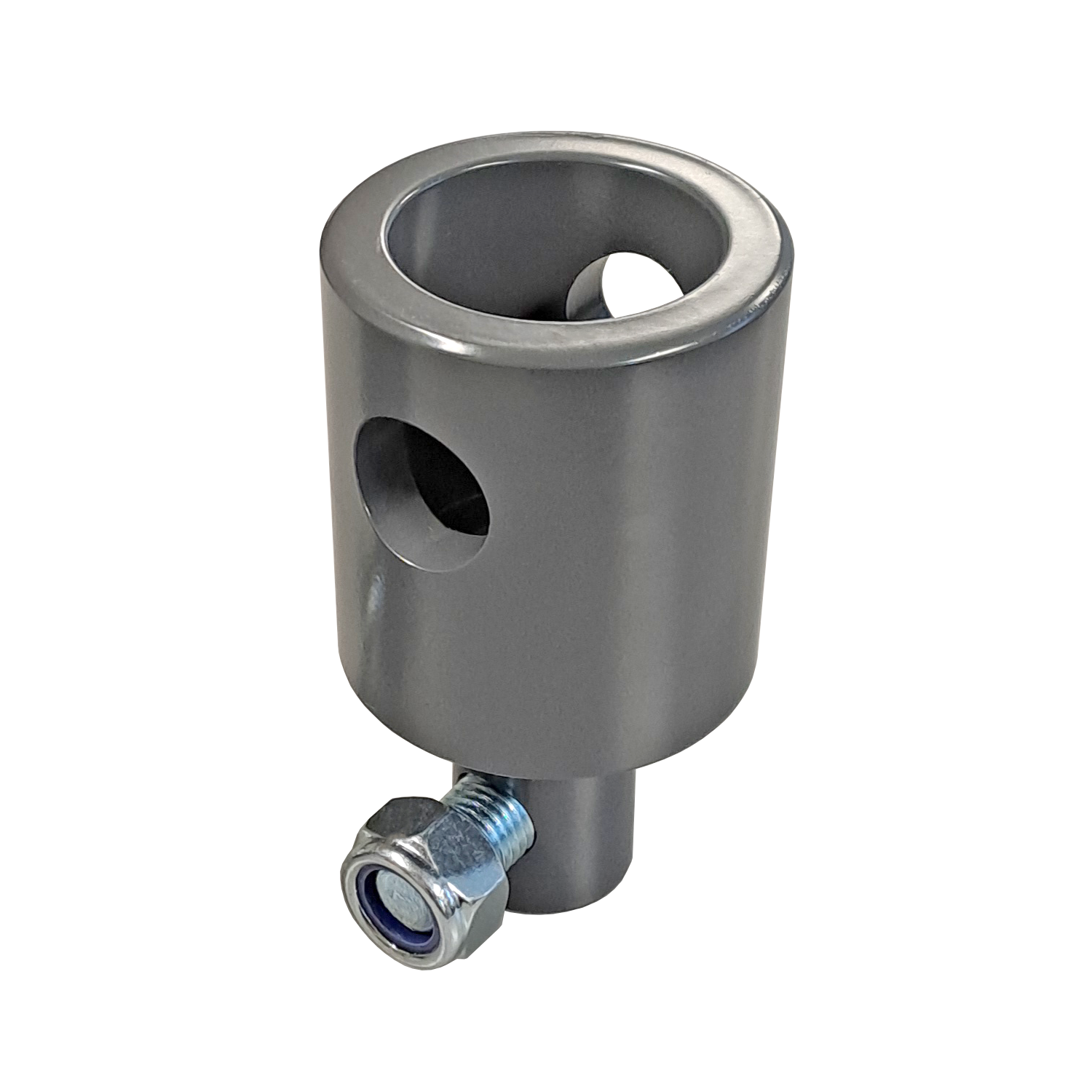

no need | Adapter 879-3902 | Adapter 879-3901 |
|
|
|
| Bj160 | Sleeve ø49.5 mm
|
|

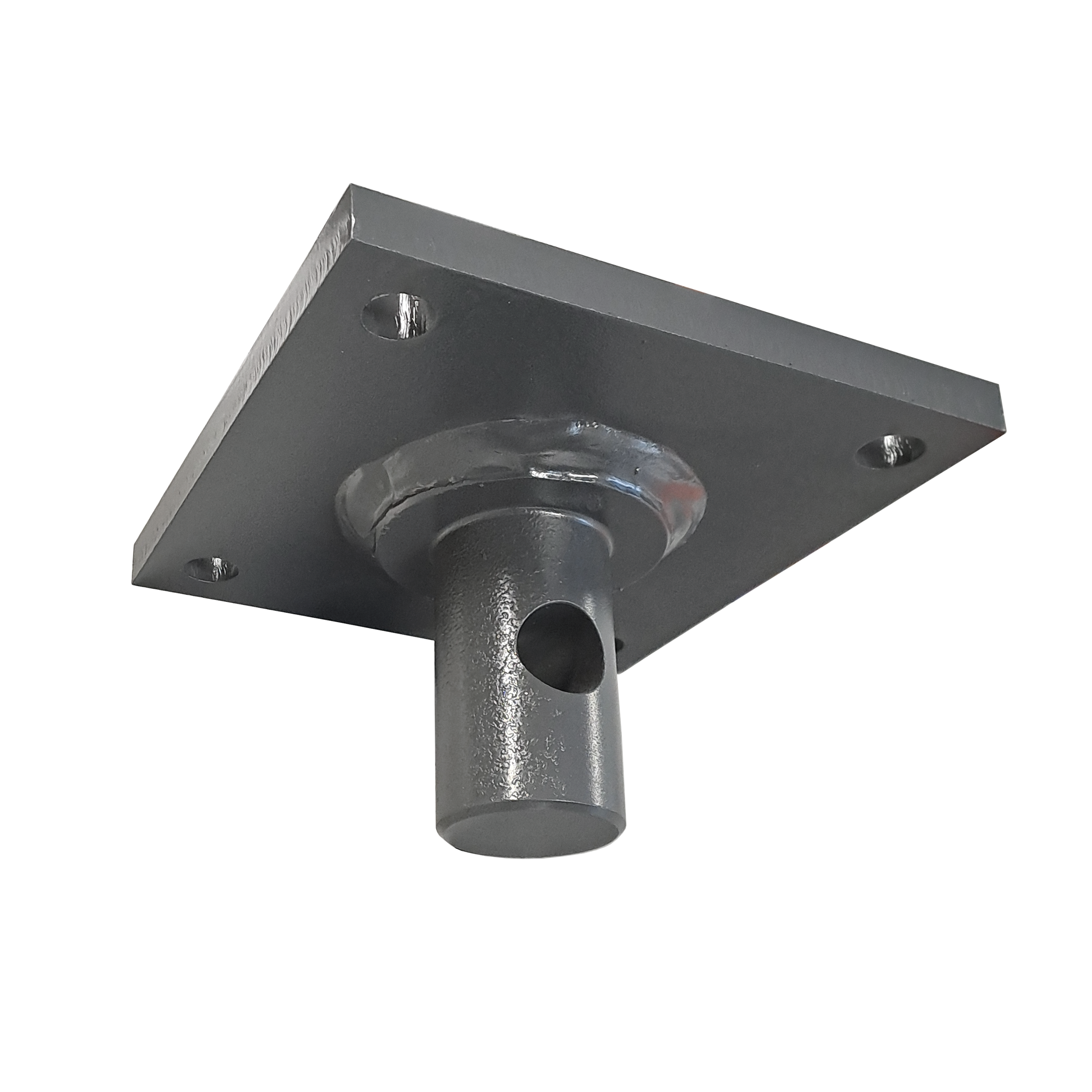

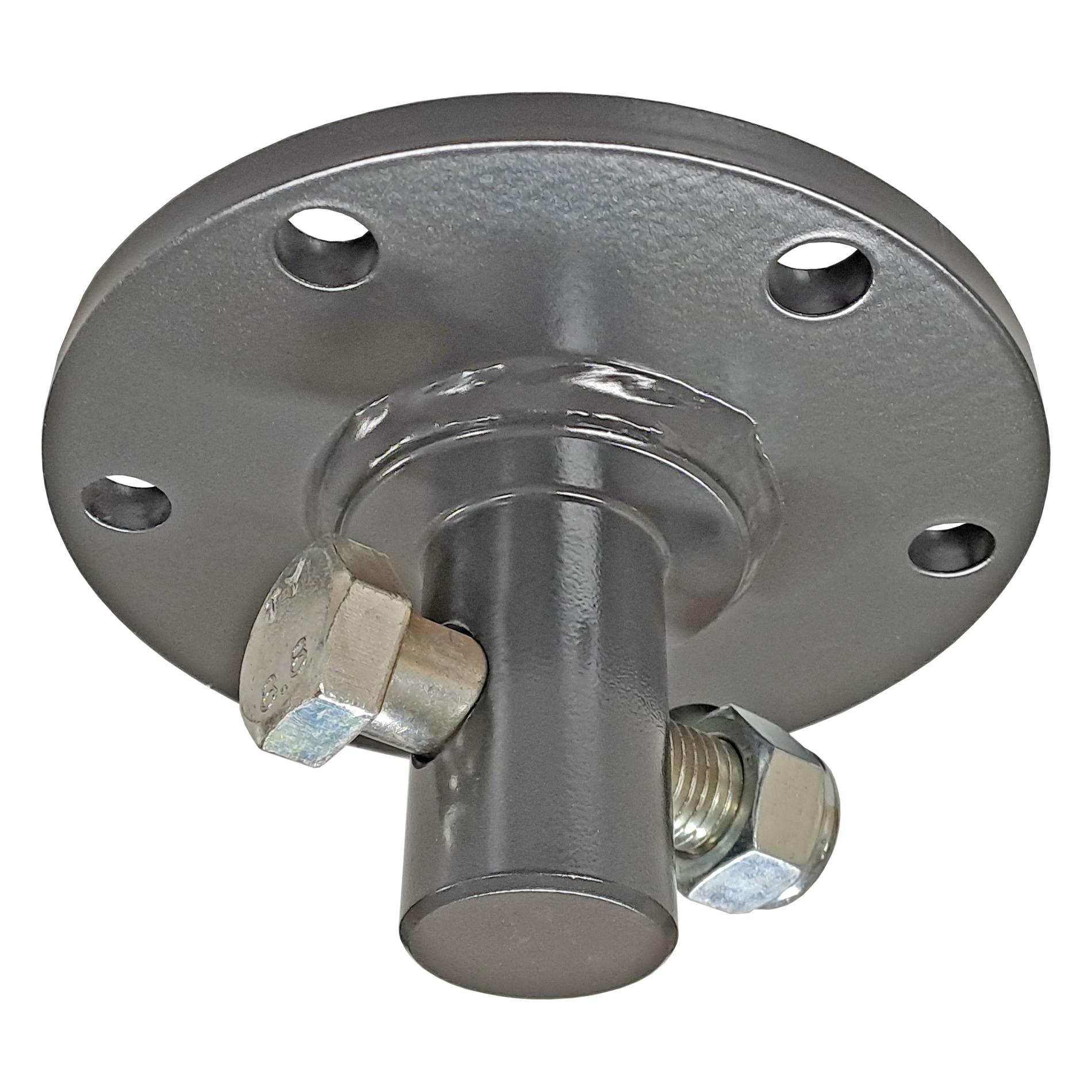

no need | Adapter 752-3021 | Adapter 752-3022 | Adapter 752-3600 | Adapter 752-3650 |

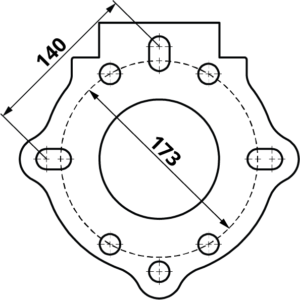

| Bj180 Bj230 | Combined flange 140×140 mm & ø173 mm
|

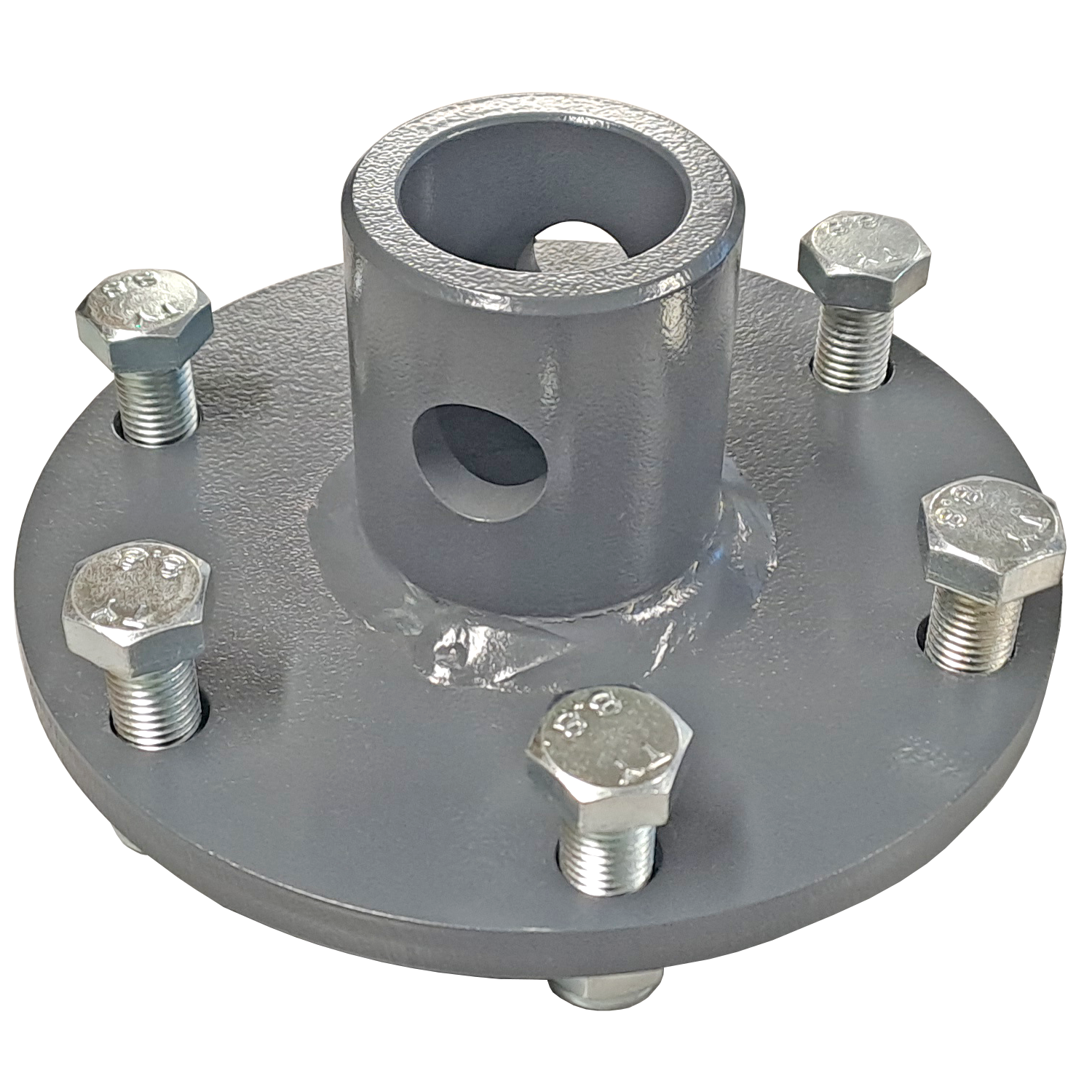

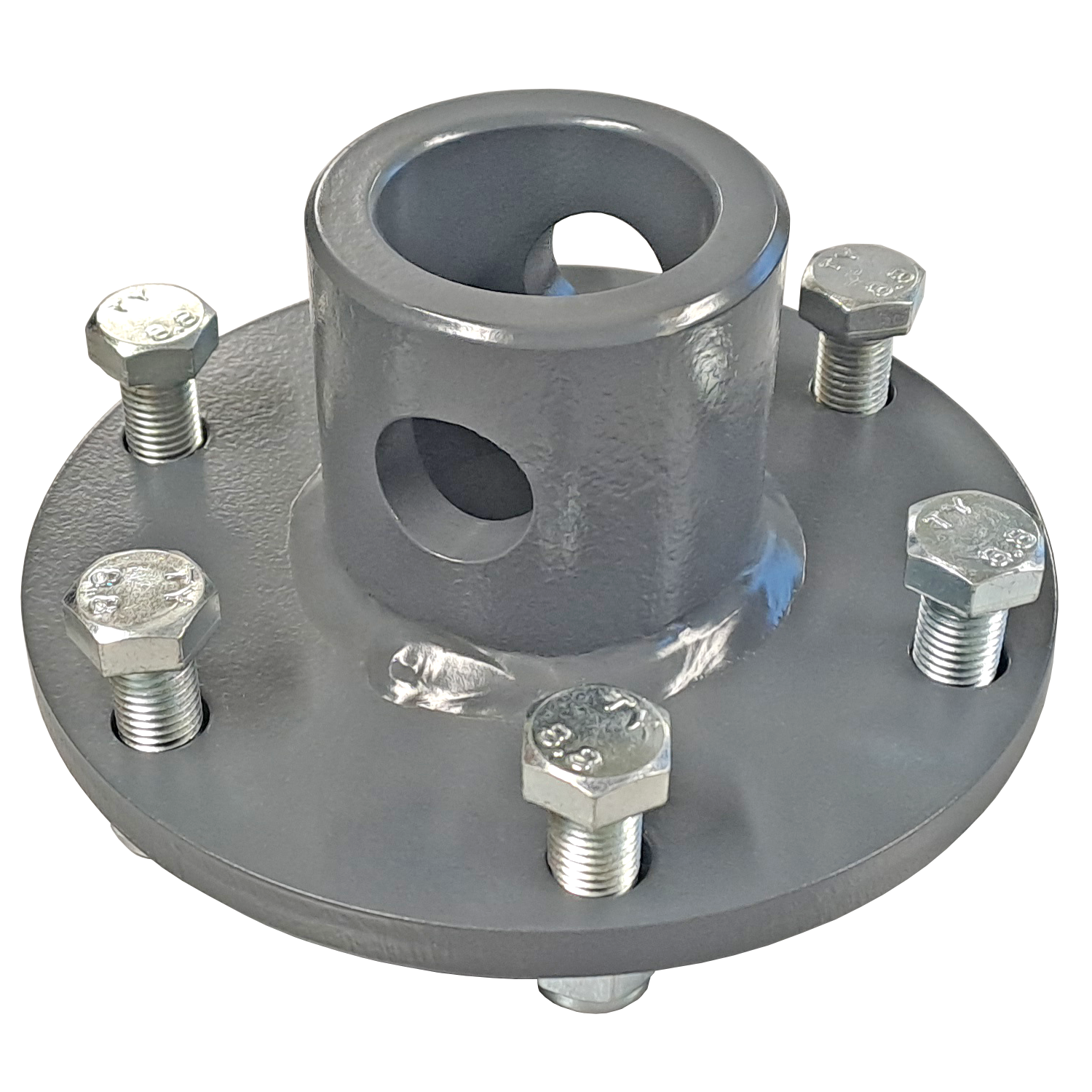

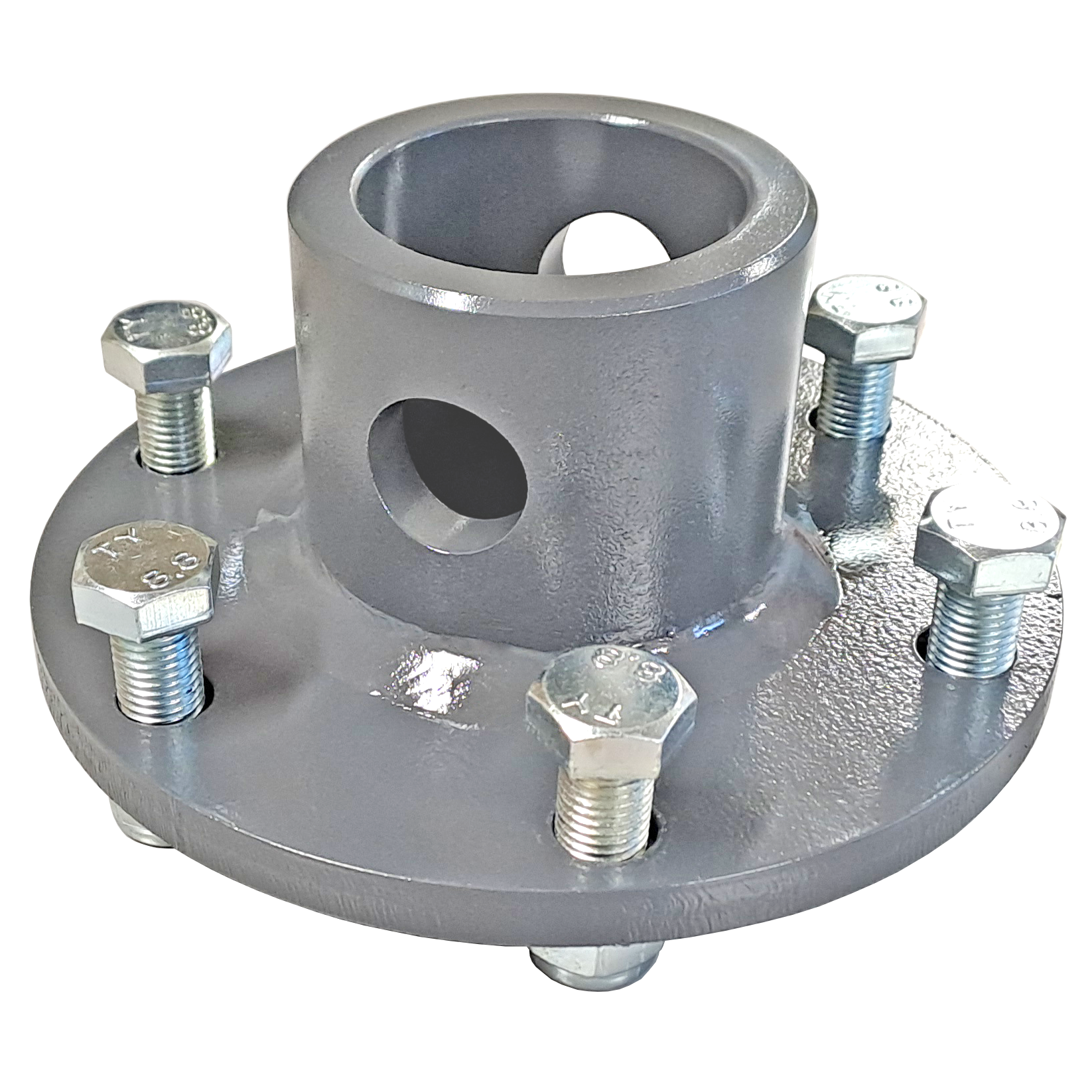

| Adapter 751-3103-7 | Adapter 751-3103-10 | Adapter 751-3103-15 |
no need |
no need |
| Bj300 Bj400S Bj400C | Flange ø173 mm (6 holes)
|
| Adapter 751-3103-7 | Adapter 751-3103-10 | Adapter 751-3103-15 | Adapter AD140_LV |
no need |
