Felling Grapple Biojack 400 Combi for Excavators

Felling grapple with a chainsaw and a knife for excavator applications

4-in-1

Delimb

Cut

Collect

Load

The Biojack 400 Combi is a polyvalent felling grapple, combining knife and saw cut modes. It’s a solution for handling trees in mixed forest with different species and diameters, like on riverbanks, roadsides, or in urban area.

The knife is quick and useful for small energy wood cut, and the saw can take care of bigger trees. No more saw chain jumps with bushes.

During loading, the knife remains in the knife casing and so the grapple can be used flexibly for both cutting and loading.

The Combi is the right solution for the maintenance of mixed forests, river banks, roadsides, railways, power lines, parks, but also for thinning work, in mountainous terrain and in tree care.

The Biojack 400EG Combi features the Extra Grapple (EG-kit). This upper grapple allows holding even a larger trunk vertical, and to lower it safely onto the ground, e.g. in close proximity to buildings or power lines.

The Biojack 400 Combi is also available with accumulating grapples (E-kit), which can be used to gather several stems at a time, without having to load them, or move them onto a stack in between.

No cable, with the optional Wireless control.

Biojack 400 Combi – 3 in 1 – Delimb, Cut & Load

Biojack 400EG Combi – 4 in 1 – Delimb, Cut & Load

Biojack 400E Combi – 4 in 1 – Delimb, Cut, Accumulate & Load

  • For the energy wood harvesting in mixed forest, or urban tree removal
  • excellent loading properties
  • pressure and return hose, leakage oil line, electric wire or wireless control for the saw
  • flexible work cycle
  • EG-kit, top grapple as option
  • E-kit, accumaulation grapple as option
  • Power cable (12V or 24V) or wireless control as option
  • TD rotator as option
  • Saw chain lubrication with chainsaw oil tank
  • Base machines: excavators 10-20 t, telescopic handlers

Technical data

Weight Biojack 400 Combi
Weight Biojack 400EG Combi

350 kg (660 lbs)
550 kg (1210 lbs)

KNIFE Cutting diameter, max.
250-300 mm
(10-12″)
SAW Cutting diameter, max.
400 mm
(16″)
KNIFE cut height (stump height)
40 mm (1.7″)
SAW cut height (stump height)
140 mm (5.5″)
Total height in the felling position
1400 mm (55″)
Grapple opening
775 mm (30″)
Oil flow (saw motor 10 cc)
80-100 L/min
(21-26 gpm)
Operating pressure range
(total pressure — back pressure)
200-250 bar
(2900-3625 psi)
Back pressure
20-30 bar
Pressure line min.
1/2″
Return line min
1/2″
Free return line min.
3/8″

Available with the following features and accessories

NTP10 kiinnike
NTP10 coupling
NTP10 (B20) coupling is available for our grapples
Karsivat kourat
Delimbing grapples
This grapple is fitted with blades, which can be used for removing branches and producing clean limbed logs

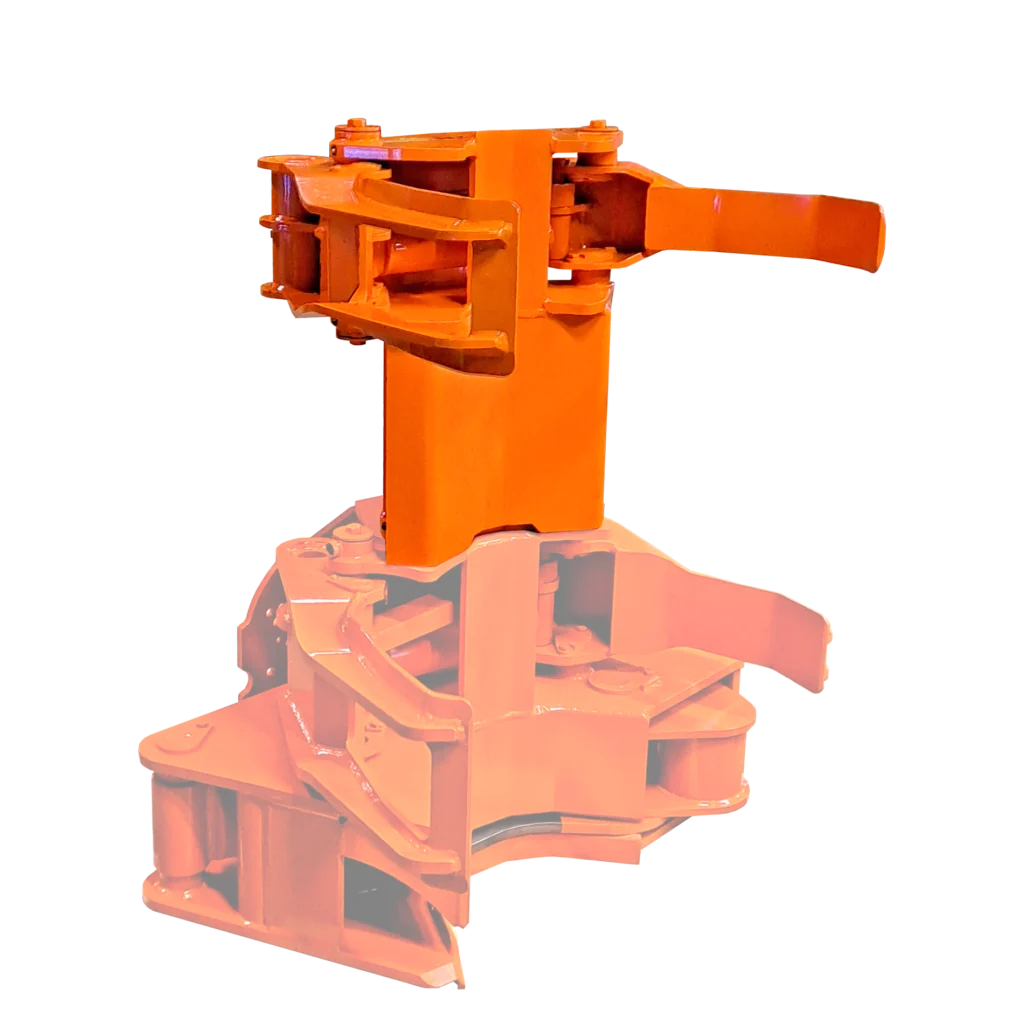

EG-Paketti
EG-kit
The EG-kit, i.e. the top grapples make it possible to hold even a larger trunk vertical, and to lower it safely onto the ground, e.g. in close proximity to buildings or power lines
E-Paketti
E-Kit
The accumulation grapples (E-kit) can be used to gather several stems at a time, without having to load them, or move them onto a stack in between
Langaton ohjaus
Wireless control
No electric wire, easy 360° rotation! Radio control from the cabin.
Pyörittäjä TD
TD Turning Device
For urban felling particularly, as well as for electric power line cleaning or any other sensitive work, the Turning Device is the solution
S-Sarjan kiinnikkeet
S Series coupling
The common coupling used on our models are S40, S45, S50, and S60
