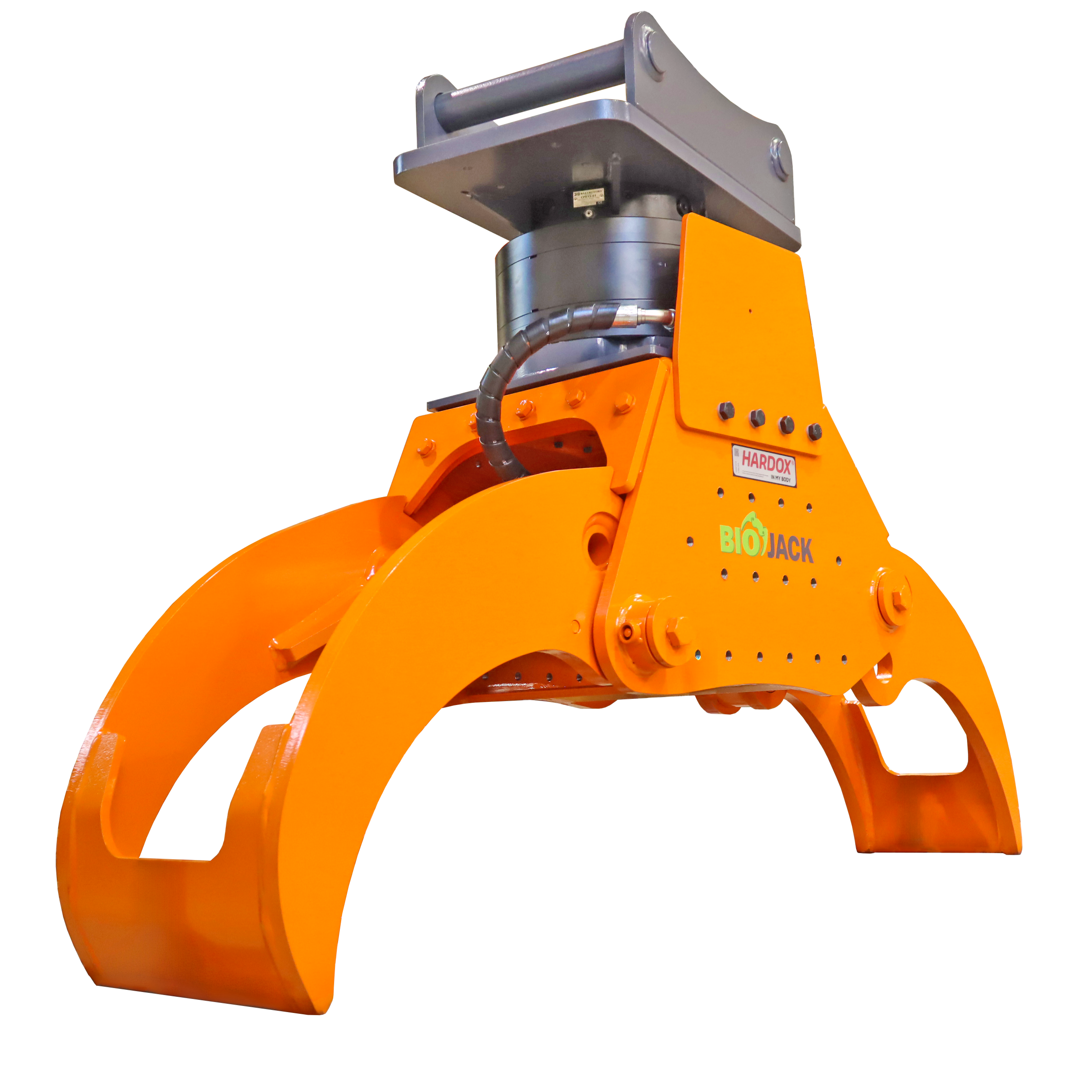

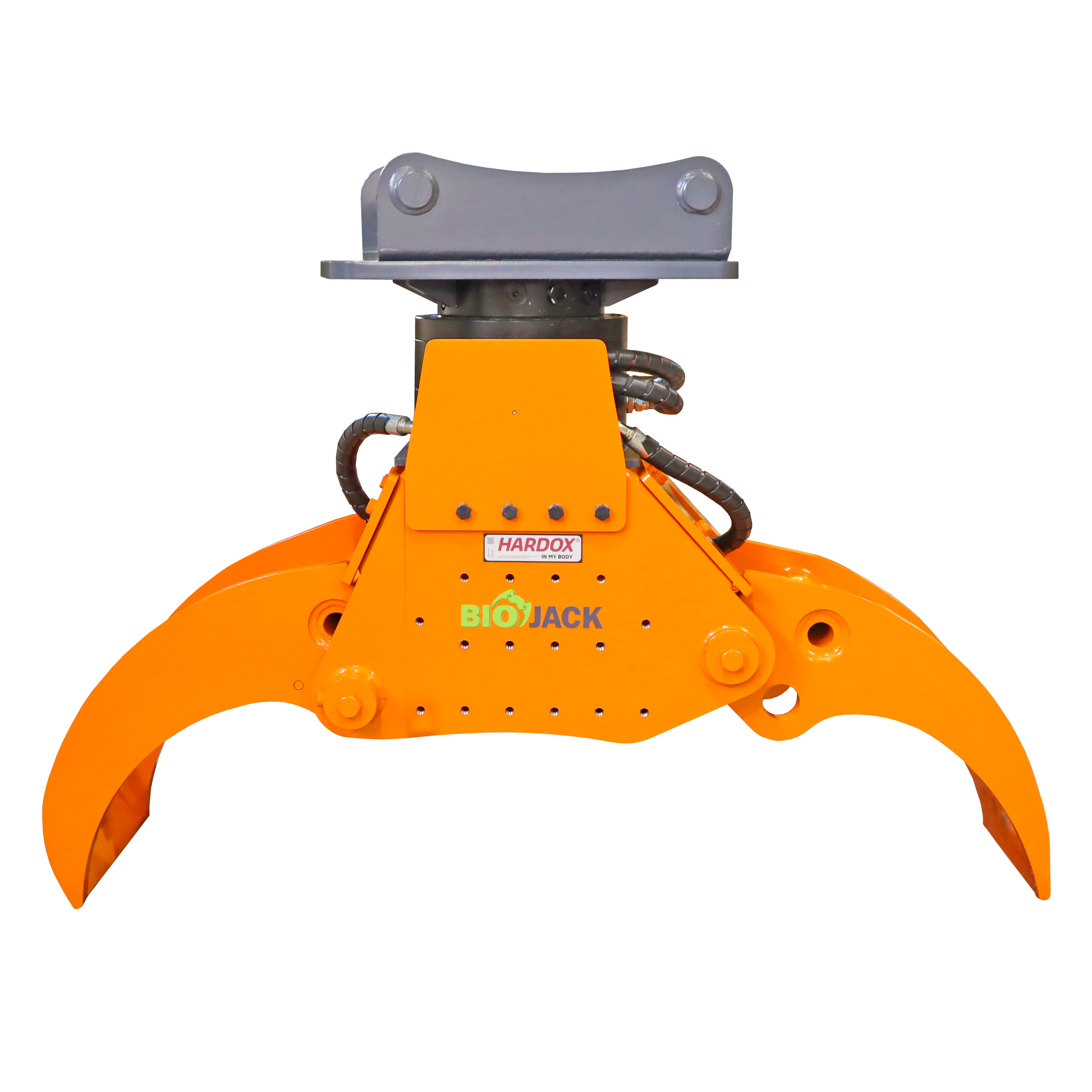

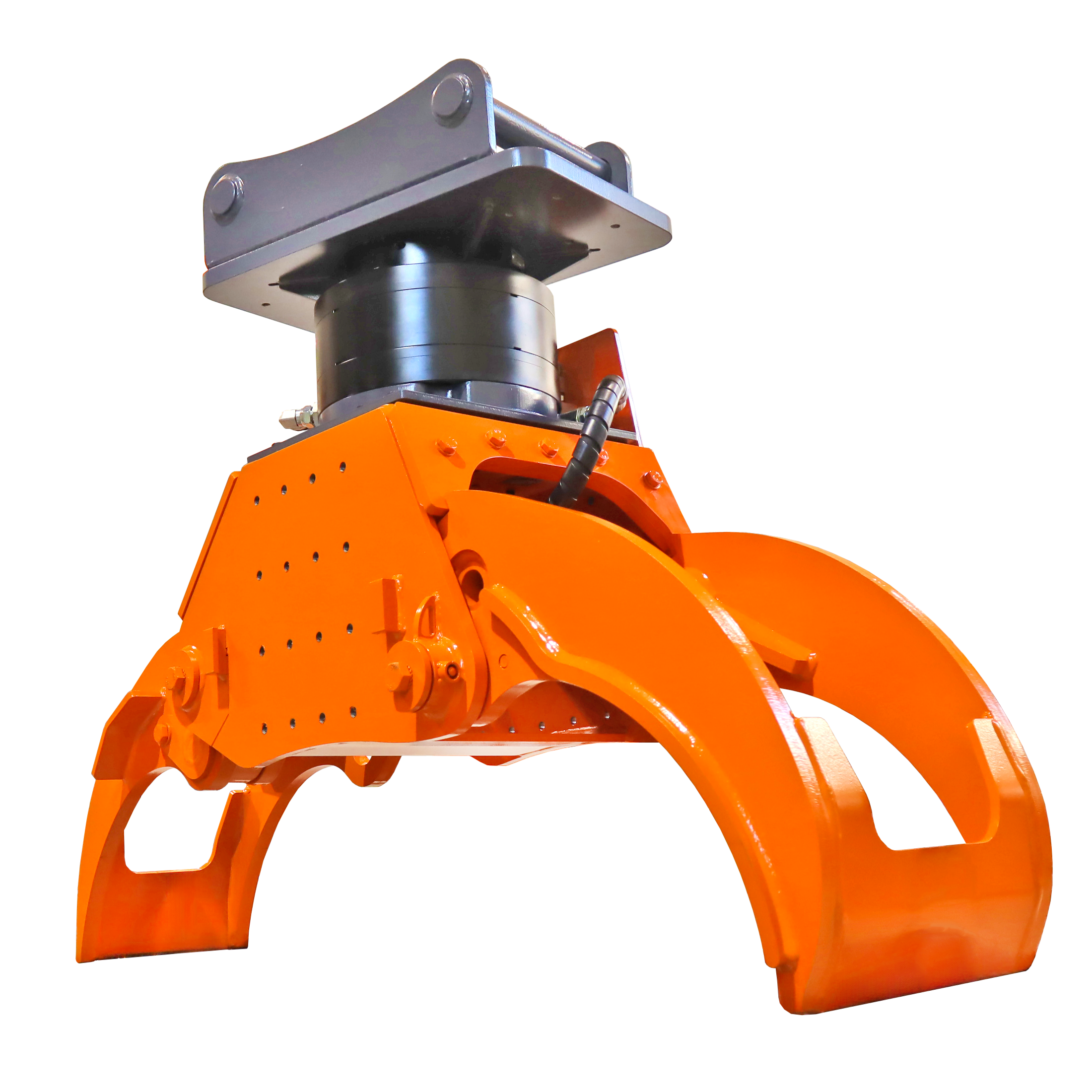

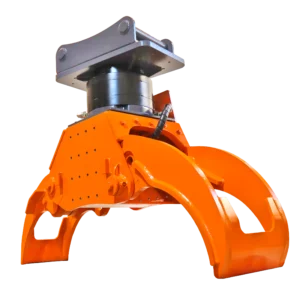

Rotator kit for the MG1700
Fast and limitless rotation
This is a complete rotation kit for the grapple MG1700. The CPR15 is a top-quality rotator, very fast, excellent for handling wood efficiently, and it holds well an asymmetric load. The rotation is limitless.
The rotator kit is bolt-fastened to the grapple frame, so it’s easy to retrofit. Any quick coupling can be attached to the adapter plate.
Rotator kit weight | 345 kg |
Rotation | Unlimited |
Torque at 250 bar | 4500 Nm (3319 lb ft) |
Rotation speed max | 25 rpm |
Rotation pressure max | 250 bar |
Oil flow recommended | 35 L/min (9.2 gpm) |
Rotation connectors | ½” x2 |
Included in the rotator kit | Mounting ring to grapple, rotator CPR15-01, coupling adapter, lock valve and shield, bolts and hoses. |
Base machines | Excavators 21 t max |
